Sintered Magnet

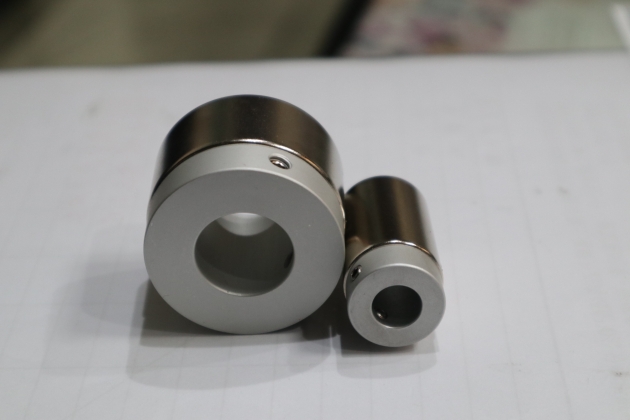

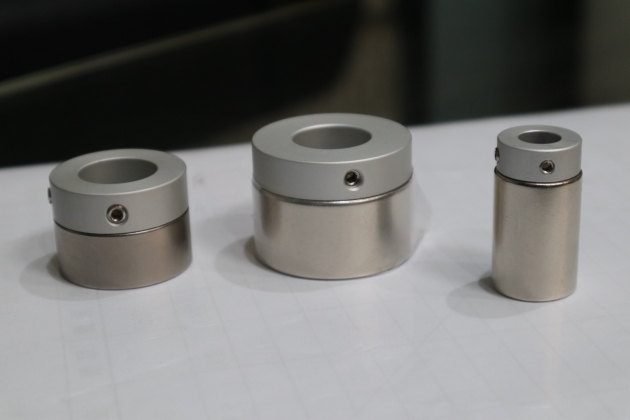

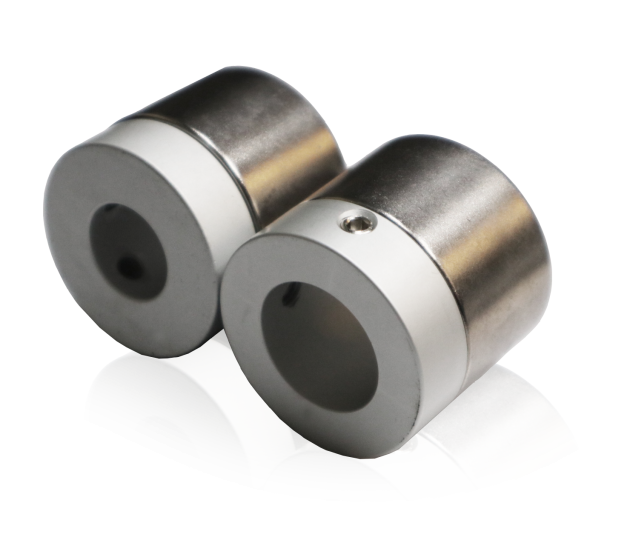

Non-Contact Magnetic Transmission Drives is driven by non-contact mode. Mainly used for LCD Panel, solar ,Touch Panel, Conveyor (low torque), vacuum chamber transfer mechanism.
Features
- Ultra quiet operation
- No wear, steady and smooth drive
- No maintenace required : No need to replace parts from wear problems
- Ultra-low particle generation : In the non-contact state, there is no oil stain, vibration and noise from the gear and it will not generate dust due to friction
| Type | Combined Type | Material | Surface Treatment | |||
| ND Type | NDL | Perpendicular Type | ① Magnet Section | ② Holder Section | ①Magnet Section | ②Holder Section |
| NDU | Parallel Type | Sintered Magnet | A5056 Aluminum Alloy |
Out-gassing Prevention Treatment | ||
| Model | Outer Diameter ∅ D | Axial ∅ d | Magnet Height h (mm) | No. of Poles (P) |
| ND21 | 21 | 10 | 25 | 6 |
| 30 | ||||
| ND26 | 26 | 12 | 14.1 | 20 |
| 15 | ||||
| ND35 | 35 | 15 | 15 | 8 |
| 21.5 | ||||
| 20 | 15 | |||
| 21.5 | ||||
| ND42 | 42 | 15 | 21 | 12 |
| 20 |
