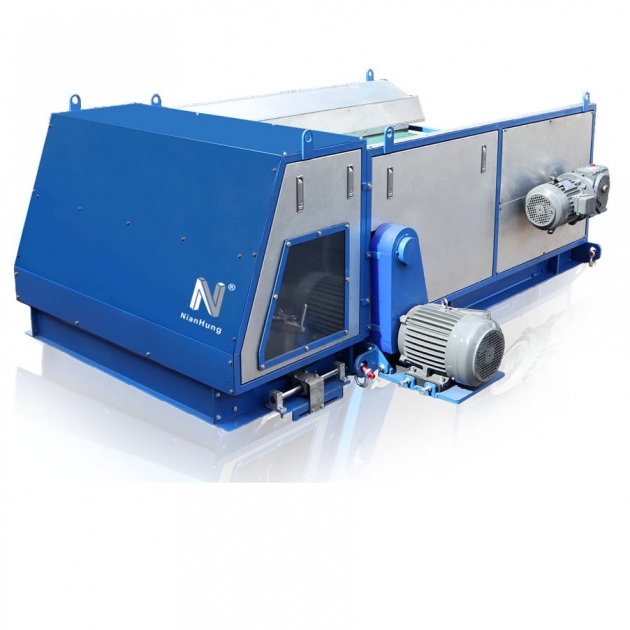

Eddy current separator
Description：
-
Recovery aluminum cans from plastic and glass bottles.
-
High efficiency of recovery of aluminum from city waste.
-
Separation of copper and plastic from crusher machines.
-
Recovery of valuable metals from glass, electronic scrap, car scrap.
Features
-
Two models available : ENH-L for metal particles larger than 10mm.ENH-S for metal particles smaller than 10mm.
-
Vibration feeder provides stable feed rate which can increase the sorting efficiency.
Specification
-
Magnet drum speed:
-
Model ENH-L : Max. 1800 rpm
-
Model ENH-S : Max. 2500 rpm
-
-
Controller included
-
Belt drive with hybrid gear motor
-
Customization of machine to meet the needs of customer
| 型號Model | 本體尺寸Body Dimensions (mm) | 迴轉數(RPM) | 皮帶速度Belt Speed (m/min) | 出力 Power Output (kW) | 概算重量Weight (KG) |
|||||
| L | W1 | W2 | H | 料寬 Belt Width |
皮帶 Belt |
渦輪 Roller |
||||
| ENH-L600 | 2850 | 1800 | 1850 | 950 | 600 | 3000 (可變Variable) |
20-100 (可變Variable) |
1.5 | 3.7 | 1600 |
| ENH-L800 | 3000 | 2000 | 2050 | 800 | 2000 | |||||
| ENH-L1000 | 3100 | 2200 | 2250 | 1000 | 2.2 | 5.5 | 2500 | |||
ENH-S 系列Series
| 型號Model | 本體尺寸 Body Dimensions (mm) | 迴轉數(RPM) | 皮帶速度Belt Speed (m/min) | 出力 Power Output (kW) | 概算 重量 Weight (KG) |
|||||
| L | W1 | W2 | H | 料寬 Belt Width |
皮帶Belt | 渦輪Roller | ||||
| SENH-S300 | 1840 | 1300 | 1335 | 1200 | 300 | 2500 (可變Variable) | 20-100 (可變Variable) |
0.75 | 2.2 | 1000 |
| SENH-S600 | 2000 | 1500 | 1535 | 600 | 3.7 | 1200 | ||||
Patent No.: M469957
Customization available, should you have any inqueries, please do not hesitate to contact us (sales@nianhung.com).
