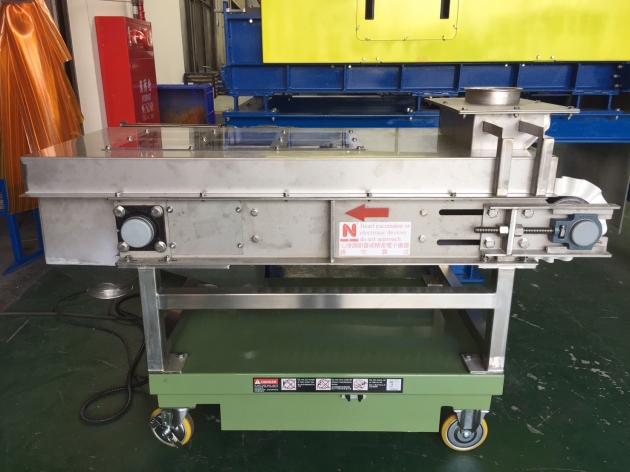

Belt Conveyor Magnetic Separator (Stainless Metal Sorting Machine)
Description：
-

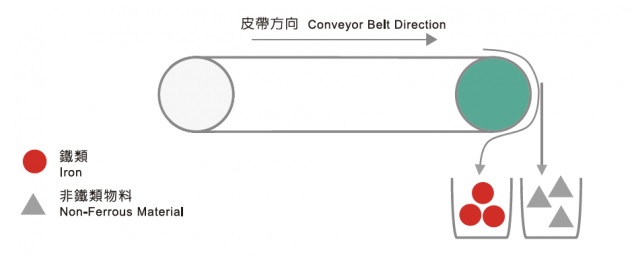

Separation or remove of black Iron and non-ferrous materials
-
Separation or remove of stainless steel and non-ferrous materials
Features
-
Two models available:
-
Model TNH-600-3K:
-
Magnetic force 3000 Gauss which is applicable for removing black iron in raw materials.
-
Model TNH-900-16K:
-
Magnetic force 16000 Gauss which is applicable for removing stainless steel in raw materials.
-
Simple operation and rolls for easy relocation
-
Only motor power is required
-
Vibration feeder provides stable feed rate which can increase the sorting efficiency.
Specification
-
Standard model equipped with wear protection wipe.
-
Highest magnetic force can reach 17,000 Gauss
-
Customization of machine to meet the needs of customer
TNH Series
| Model | Magnetic Force (GAUSS) |
Body Dimensions (mm) | Belt Speed(m/min) | Power Output (KW) |
Weight (KG) |
||||
| L | W1 | W2 | H | Belt Width | |||||
| TNH-500 | 3000 ~ 17000 |
2000 | 700 | 730 | 700 | 500 | 20~40(Variable) | 0.75 | 560 |
| TNH-700 | 900 | 930 | 800 | 700 | 580 | ||||
| TNH-900 | 1100 | 1130 | 1000 | 900 | 680 | ||||
